Oct 08,2024The sensor system is the basis for the pilot self-operated pressure regulating valve to achieve the pressure stability control function. This system consists of high-precision pressure sensors, which are cleverly designed and installed in key positions of the valve body to monitor the pressure changes in the system in real time.
The working principle of the pressure sensor is based on the piezoresistive effect or piezoelectric effect. When the fluid passes through the valve, its pressure acts on the sensor sensitive element, causing the resistance or charge of the element to change. This change is then captured by the circuit inside the sensor and converted into an electrical signal, which is proportional to the fluid pressure. This conversion process is not only fast but also accurate, ensuring that the sensor can reflect the pressure state in the system in real time.
The sensor transmits the collected pressure signal to the controller via cable or wirelessly. As the "brain" of the entire control valve system, the controller is responsible for receiving and processing these signals, and accurately adjusting the valve according to the preset pressure range and control strategy.
After receiving the pressure signal transmitted by the sensor, the controller will immediately analyze and process these signals. Through the built-in algorithm, the controller can calculate the deviation between the current system pressure and the preset pressure range, and determine the required adjustment amount based on this deviation.
The determination of the adjustment amount involves multiple factors, including the valve opening, the flow rate of the fluid, the resistance of the system, etc. The controller will take these factors into consideration and change the flow rate of the fluid by adjusting the valve opening, thereby achieving precise regulation of the system pressure. This process is dynamic, and the controller will adjust the valve opening in real time according to the changes in the system pressure to ensure that the system pressure always remains within the preset range.
It is worth noting that the control process of the pilot self-operated pressure regulating valve is not only fast but also stable. Its built-in pilot mechanism can make small adjustments to the valve in advance, thereby reducing the adjustment amplitude and frequency of the main valve and improving the stability and reliability of the entire system.
The precision sensing and intelligent control capabilities of the pilot self-operated pressure regulating valve enable it to adapt to various complex working conditions and media. Whether in harsh environments with high temperature and high pressure, or in precision manufacturing processes that require high-precision pressure control, the valve can demonstrate excellent performance.
In high temperature environments, sensors and controllers use high temperature resistant materials and technologies to ensure their stable operation under extreme conditions. At the same time, the design and material selection of the valve body also fully consider the strength and sealing in high temperature environments, ensuring the reliability and durability of the valve.
In situations where high-precision pressure control is required, the pilot self-operated pressure regulating valve achieves precise control of system pressure by improving the accuracy and resolution of the sensor and optimizing the control algorithm and parameters. This high-precision control not only improves production efficiency, but also ensures the stability and consistency of product quality.
The valve also has good medium adaptability. Whether it is gas, liquid or steam, as long as the appropriate material and sealing structure are selected, the pilot self-operated pressure regulating valve can meet its pressure control needs.
The precision sensing and intelligent control capabilities of the pilot self-operated pressure regulating valve have made it widely used in many industrial fields. In the chemical industry, the valve is used to control the pressure of equipment such as reactors and storage tanks to ensure the safety and stability of the production process. In the petroleum industry, it is used in the exploitation, transportation and processing of oil and gas fields to achieve precise control of fluid pressure.
In the power industry, pilot self-operated pressure regulating valves are used in the pressure regulating systems of equipment such as boilers and steam turbines to ensure the stability and efficiency of the power generation process. At the same time, in the metallurgical and pharmaceutical industries, the valve also plays an important role, providing reliable pressure control solutions for various production processes.
With the continuous advancement of industrial technology and the continuous expansion of application areas, the pilot self-operated pressure regulating valve will continue to play its advantages of precision sensing and intelligent regulation, and contribute to the sustainable development of the industrial field. In the future, we can expect more technological innovations and progress, such as higher-precision sensors, smarter control algorithms, and more reliable valve body materials, which will further enhance the performance and adaptability of the valve.
With the rapid development of industrial Internet and Internet of Things technologies, pilot self-operated pressure regulating valves will also gradually realize functions such as remote monitoring, intelligent diagnosis and predictive maintenance. This will provide industrial users with more convenient and efficient pressure control solutions and promote the process of industrial automation and intelligence.

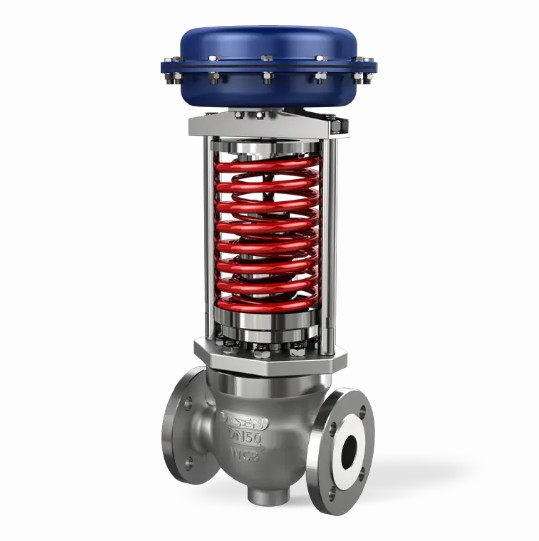

Direct-acting self-operated pressure regulator: self-operated characteristics lead industrial control to new heights
